今回Ubuntu Desktop 20.04.2をインストールしてBondingを試すことにしました。リクエストがあったので。

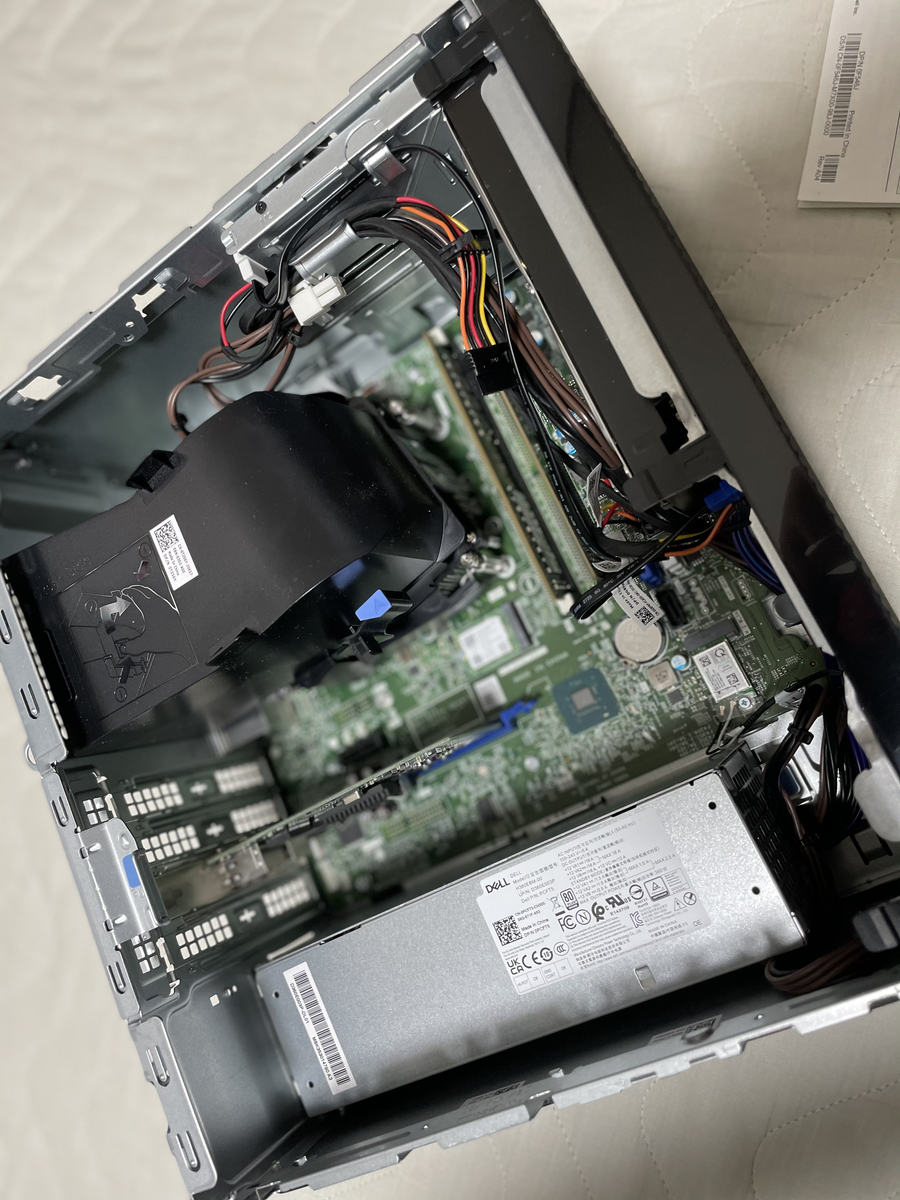

使ったマシンはDellのInspiron 3881です。仕事用に会社で買ってもらいました。 ...ちょっとDPDKをコンテナーで動かすお仕事のためにですね(その辺りは別の機会にでも)。
今回買ってもらったのは、第10世代 インテル® Core™ i5-10400 プロセッサー、256GB M.2 PCIe NVMe SSD + 1TB 7200 rpm 3.5インチ SATA ハードドライブを実装したモデルです。標準メモリーは8GBなので、メモリーを32GB(PC4-21300 16GBX2)に増設しています。 CPUはCore i7とかにしたかったのですが、このシリーズはCore i3かi5しか選べないようなので、Core i5にしています。
さてこのモデルはWi-FIチップのほか1GbEのNICが載っているのですが、買って届くまでオンボードNICがIntelのE1000EのNICであることに気が付きませんでした(書いていなかった)。 DPDK検証のために別途購入した「インテル PRO/1000 PT デュアルポート サーバ・アダプタ EXPI9402PT」を接続することにしました。
スイッチは用意できなかったので、Aterm WG1900HP2のLANポートを使いました。
リンクスピードも1000Mb/sで認識していますし、OKですね。
$ lspci|grep Ethernet 00:1f.6 Ethernet controller: Intel Corporation Ethernet Connection (11) I219-V 01:00.0 Ethernet controller: Intel Corporation 82571EB/82571GB Gigabit Ethernet Controller D0/D1 (copper applications) (rev 06) 01:00.1 Ethernet controller: Intel Corporation 82571EB/82571GB Gigabit Ethernet Controller D0/D1 (copper applications) (rev 06) $ sudo ethtool eno1|egrep "Speed|Duplex" Speed: 1000Mb/s Duplex: Full $ sudo ethtool enp1s0f0|egrep "Speed|Duplex" Speed: 1000Mb/s Duplex: Full $ sudo ethtool enp1s0f1|egrep "Speed|Duplex" Speed: 1000Mb/s Duplex: Full
ではせっかく同じE1000EのNICが複数ポート実装された環境ができたわけですし、Bondingでもすることにしましょう。
Ubuntuの「アレ」の話
このブログで何度も言及しているように、Ubuntu 17.10以降のバージョンではNetplan.ioがネットワーク設定に使われていて、 DesktopとServerではバックエンドで使っているレンダラーが異なります。
- Ubuntu Desktop: Network Manager
- Ubuntu Server: networkd
(Ubuntu 20.04.2時点)
なので、「Ubuntu 20.04 bonding」とかで検索すると、深みにハマることになります。もちろんレンダラーをnetworkdに切り替えれば、同じように設定できますけど。
ちなみに私はNetplan.ioが嫌いで嫌いで嫌いでしょうがないです。

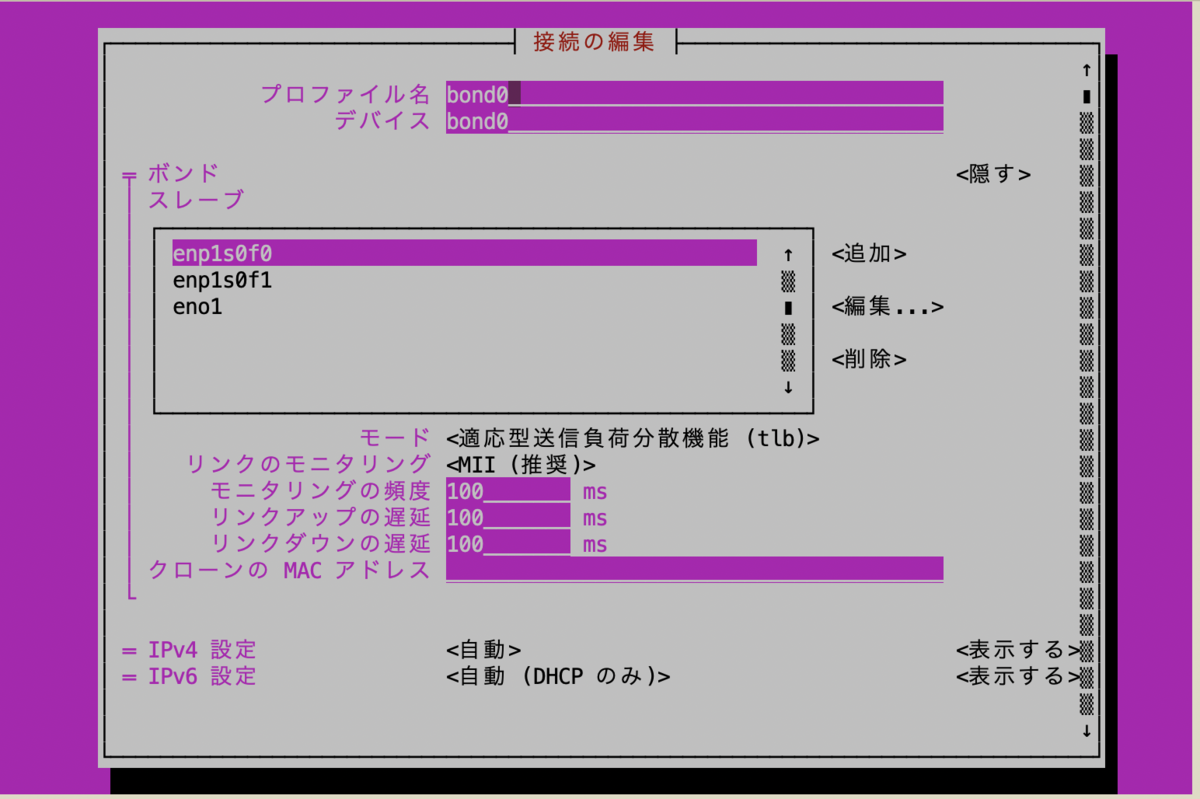

Ubuntu Desktopの場合、20.04時点ではNetwork Managerが使われています。 このため、Network Managerの各ツールを使えばbondingを作成できます(ちなみにGUIの設定は、現時点ではBondingを作ることはできないようです)。 例えばNetworkManager TUI(nmtui)を使うと、設定がやりやすいようです。今回はbalance-tlbでBondingしてみます。
bondingが終わったら、一旦再起動。 再起動後は次のように認識されました。
$ sudo ethtool bond0 Settings for bond0: Supported ports: [ ] Supported link modes: Not reported Supported pause frame use: No Supports auto-negotiation: No Supported FEC modes: Not reported Advertised link modes: Not reported Advertised pause frame use: No Advertised auto-negotiation: No Advertised FEC modes: Not reported Speed: 3000Mb/s Duplex: Full Port: Other PHYAD: 0 Transceiver: internal Auto-negotiation: off Link detected: yes
iperf 3を使ったベンチマーク(NIC 1本)
DellのPCでiperf3サーバーを起動してみます。iperf3サーバーをDellのInspiron 3881で動かし、クライアントはmacOSにHomebrewなどを使って入れたiperf3から実行することにします。 1つのポートでサーバーが動いていた時はこんな結果でした。思ったほど速くはないですね。
$ iperf3 -c 192.168.0.129 Connecting to host 192.168.0.129, port 5201 [ 5] local 192.168.0.131 port 49941 connected to 192.168.0.129 port 5201 [ ID] Interval Transfer Bitrate [ 5] 0.00-1.00 sec 20.8 MBytes 175 Mbits/sec [ 5] 1.00-2.01 sec 21.8 MBytes 182 Mbits/sec [ 5] 2.01-3.00 sec 19.4 MBytes 163 Mbits/sec [ 5] 3.00-4.00 sec 18.8 MBytes 158 Mbits/sec [ 5] 4.00-5.00 sec 18.3 MBytes 154 Mbits/sec [ 5] 5.00-6.00 sec 20.7 MBytes 174 Mbits/sec [ 5] 6.00-7.00 sec 21.6 MBytes 180 Mbits/sec [ 5] 7.00-8.00 sec 15.3 MBytes 129 Mbits/sec [ 5] 8.00-9.00 sec 18.4 MBytes 155 Mbits/sec [ 5] 9.00-10.00 sec 22.5 MBytes 188 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate [ 5] 0.00-10.00 sec 198 MBytes 166 Mbits/sec sender [ 5] 0.00-10.04 sec 196 MBytes 164 Mbits/sec receiver iperf Done.
iperf 3を使ったベンチマーク(NIC 3本)
3つのポートをbondingした時はこんな結果になりました。単体ポートで動いていた時よりビットレートは高くなりましたが、もう少し速度が出ると嬉しいですね。
$ iperf3 -c 192.168.0.145 (DHCPでIPアドレスを取得したため、IPアドレスが変わっています) ----------------------------------------------------------- Server listening on 5201 ----------------------------------------------------------- Accepted connection from 192.168.0.131, port 51350 [ 5] local 192.168.0.145 port 5201 connected to 192.168.0.131 port 51351 [ ID] Interval Transfer Bitrate [ 5] 0.00-1.00 sec 58.1 MBytes 487 Mbits/sec [ 5] 1.00-2.00 sec 44.6 MBytes 374 Mbits/sec [ 5] 2.00-3.00 sec 61.6 MBytes 517 Mbits/sec [ 5] 3.00-4.00 sec 67.9 MBytes 570 Mbits/sec [ 5] 4.00-5.00 sec 61.8 MBytes 519 Mbits/sec [ 5] 5.00-6.00 sec 62.0 MBytes 520 Mbits/sec [ 5] 6.00-7.00 sec 59.7 MBytes 501 Mbits/sec [ 5] 7.00-8.00 sec 66.2 MBytes 555 Mbits/sec [ 5] 8.00-9.00 sec 58.5 MBytes 491 Mbits/sec [ 5] 9.00-10.00 sec 48.3 MBytes 405 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate [ 5] 0.00-10.02 sec 589 MBytes 493 Mbits/sec receiver
そのうちBondingモードを802.3adにして試そうと思います。
